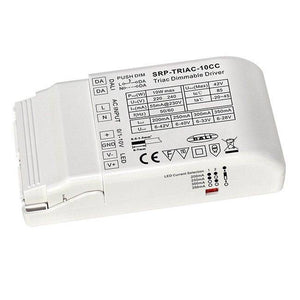

The SRP-TRIAC-10CC is a 4-in-1 dimmable LED driver : TRIAC, DALI, PUSH, and 0/1-10V, allowing it to work with different control systems. This 10W dimmable TRIAC LED driver features a 1-channel constant current output and adjustable current from 200mA to 350mA via DIP switches. Designed for 200-240V AC input.
The LED driver adopts an amplitude dimming output. It enables smooth, deep dimming down to 1% without flickering or buzzing. One DALI address can be automatically assigned by DALI masters. It is compatible with universal 0/1-10V dimmers.
Detailed Description

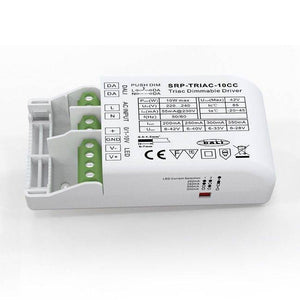

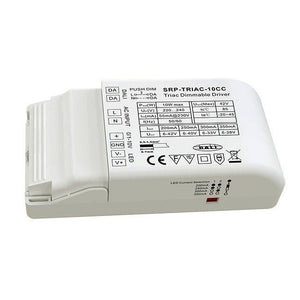

4-in-1 Dimmable LED Driver: DALI, PUSH, TRIAC, 0/1-10V. 10W Constant Current
The SRP-TRIAC-10CC is an ENEC approved 10W dimmable TRIAC LED driver , with 1 channel constant current output and adjustable current from 200mA to 350mA via DIP switches, allowing it to be suitable for different LED lights .
The triac dimming driver is designed with DALI, Push, Triac, and 0/1-10V 4-in-1 dimming interfaces, allowing it to work with different control systems. 200-240V AC input. The LED driver adopts amplitude dimming output instead of PWM output to ensure true flicker-free operation.
The LED dimmer 's power factor can be over 0.9, and its efficiency is over 83%. It enables smooth, deep dimming down to 1% without flickering or buzzing. One DALI address can be automatically assigned by DALI masters.
Compatible with Tridonic Software. User app for controlling individual luminaires via Wi-Fi.
DALI dimming is specifically designed for uniformly dimmable LED lighting, with no dips, flicker, or noise.
Compliant with IEC 62386-101, IEC 62386-102, and IEC 62386-207 standards, this DALI driver is compatible with most DALI systems on the market. The Triac dimming driver can be compatible with universal Triac dimmers. When selecting the 0/1-10V interface, it is compatible with universal 0/1-10V dimmers.

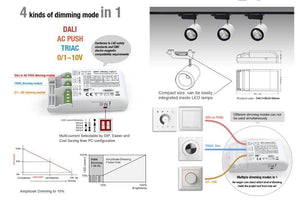

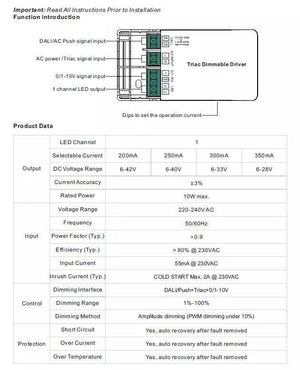

Main Features TRIAC Dimmable DALI PUSH 0/1-10V regulator
- Dimmable LED driver with DALI/Push+Triac+0/1-10V dimming interfaces
- 1 channel constant current output, maximum output power 10W
- Output current 200mA-350mA selectable by DIP switch
- Allows you to control single-color LED lighting.
- Analog current control, no PWM output, no flicker.
- Class Ⅱ power supply, fully insulated plastic case
- High power factor and efficiency
- Complies with IEC 62386-101, IEC 62386-102, IEC 62386-207 standards
- Compatible with universal DALI masters supporting DT6 commands. With universal TRIAC dimmers. Compatible with universal 0/1-10V dimmers.
- IP20 protection rating, suitable for indoor LED lighting applications.

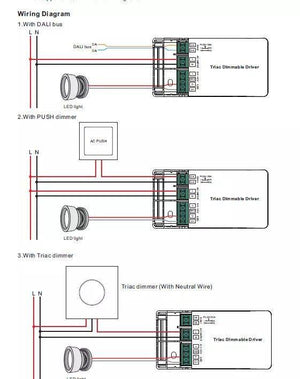

1. Selecting the regulation interface
1.1. The LED driver supports 4 types of dimming input: DALI, Push, Triac, 0/1-10V.
1.2. Select any of the 4 regulation interfaces to wire at a time.
1.3. To connect a new dimming interface, the previously connected dimming interface must be disconnected.
1.4. DO NOT connect more than 2 regulation interfaces simultaneously.
2. DALI address assigned by DALI masters.
While connecting with DALI interface, 1 DALI address can be assigned by DALI Master controller automatically.
3. PUSH Dimmer Mode
While connected with a PUSH AC, the controller will be in Push Dimmer mode, the operations in Push Dimmer mode are as follows:
3.1. Press the button to turn on/off.
3.2. Press and hold the button to increase or decrease the light intensity to the desired level and release it, then repeat the process to adjust the light intensity in the opposite direction. The dimming range is 1% to 100%.
3.3. The memory function after power off or power failure allows the device to memorize the state before power off while powering on again.
4. Triac regulation input
When connected to a Triac dimmer, different Triac dimmers from different suppliers may have different minimum dimming levels below which the controller cannot be dimmed. To dim to 1%, make sure the dimmer supports a minimum dimming level of 1%.
